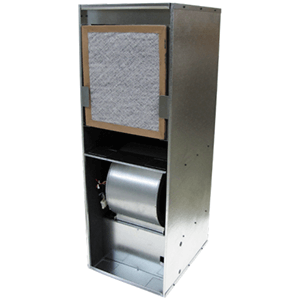

Aspen, AED-L-004+FCLL15

SKU
AED-L-004+FCLL15
Specifications
Dimension 57Hx19.75Wx24.75D
Tonnage 5
Type Electric Furnace
Fan Motor Constant Torque ECM
Return Front & Top
Configuration Downflow
Brand Aspen
Parts Warranty 5-Year Limited Warranty
Tech Guide aed_techguide.pdf
Designed for the manufactured home market with flexibility in mind. Downflow configuration with front and top return as shipped. 2 – 5 tons of cooling or heating airflow with a range of electric heat kits. ETL listed for use with R-22, R-410A, R-454B, and R-32 when a proper metering device is used. In accordance to UL 60335 Refrigerant Detection Systems are factory-installed on A2L refrigerant ready air handlers. Constant torque ECM, speeds and torque controlled by software to maintain constant torque. Direct drive blowers circulate air quietly and efficiently. Motor speeds and torques pre-programmed in the motor at the factory. Blowers mounted on rails so they can be easily removed for service. This model has a 15 KW heat kit with a power connection inlcuding a circuit breaker. Models with electric heat include sequencers and temperature limit switches for safe, efficient operation. Modules are easily installed in the field using molex plugs or can be ordered factory-installed. Controls are accessible from the front for easy service. Disconnect does not protrude through the wall panel.
